Steel Structural Plate

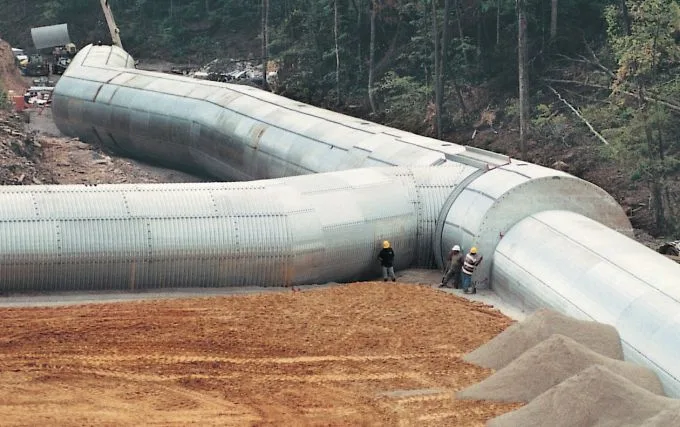

Steel structural plate consists of corrugated steel sections that are bolted together to form the required shape. The corrugated sections are commonly referred to as plates and have a standard corrugation profile of 6 x 2 inches that are formed perpendicular to the length of the culvert bridge.


Structural plate structures are specified where the pipe required exceeds the size that can be shipped to the job site, or where earth cover is so great that the wall thickness furnished by a shop-manufactured pipe will not meet design requirements.

Standard plates are fabricated in three lengths and several different widths. These plates are available in thicknesses from 0.222 inches to 0.380 inches. Plates are furnished curved to various radii and are clearly identified by the fabricator for field assembly. The fabricator provides assembly drawings to aid the installer.

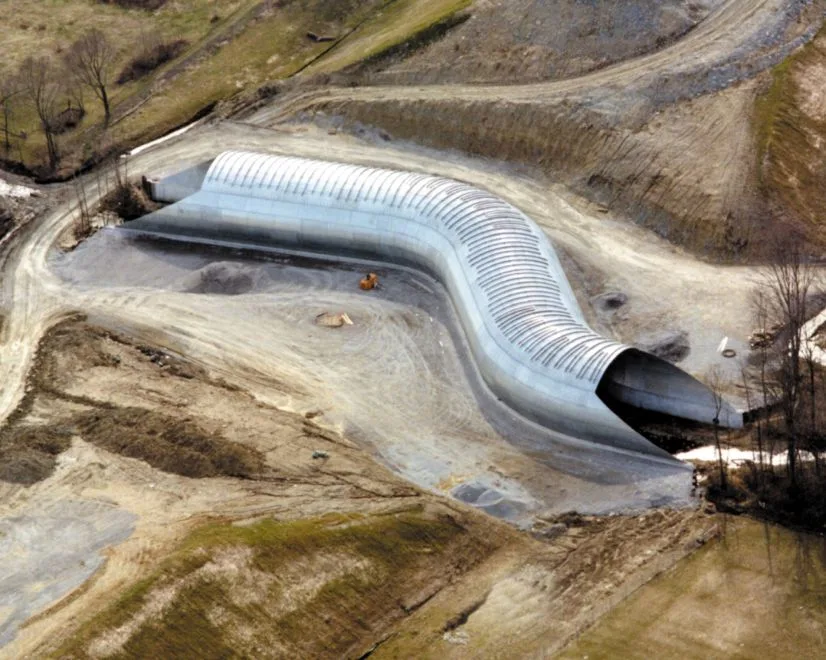

The plates are assembled into various shapes as indicated in the table below. The shapes include round, pipe arch, singles-radius arch, horizontal ellipse, low profile arch, high profile arch, pear, underpass and vertical ellipse, special shapes, and other sizes of standard shapes beyond what is shown in the tables, are also available, The fabricator provides detailed assembly instructions with each structure.


The benefits of steel structural plate include:

  • Structural capacity
  • Lightweight construction
  • Easy installation
  • Aesthetically pleasing
  • Economical solutions
  • Design flexibility
Shapes and uses of corrugated steel  structural plate
Shape Range of Sizes Common Uses
Round round 6 in. -51 ft Culverts, subdrains, sewers, service
tunnels, etc. All plates same radius.
For medium and high fill (or trenches)
Vertical ellipse
5% nominal
eclipse 4-21 ft
nominal;before elongating
Culverts, sewers, service tunnels,
recovery tunnels. Plates of varying
radii;shop favbrication. For
appearance and hwhere backfill
compaction is only moderate.
Pipe Arch pipearch Span x Rise 17 in, x 13 in.
20ft 7 in x
13 ft 2 in.
Where headroom is limited, Has
hydraulic advantages at low flows.
Corner plate radius. 18 inches or
31 inches for structural plate.
Underpass* underpass Span x Rise
5ft 8 in, x 5 ft 9 in.
20 ft 4 in. x 17 ft 9 in.
For pedestrians, livestock or
/> vehicles (structural plate).
Arch arch Span x Rise
5 ft x 1 ft 9 1/2 in.
82 ft x 42 ft
For low clearance large waterwway
openinng, and aesthetics (structural plate).
Horizontal Ellipse Horiz Span
7-40 ft
Culverts, grade separations, sorm
sewers, tunnels (structural plate).
Pear pear Span
25-30 ft
Grade separations, culverts, storm
sewer, tunnels (structural plate).
High Profile
highProf Span
25-83 ft
Culverts, grade separations, storm
sewers and tunnels. Ammunition
magazines, earth covered storage
(structural plate).
Low Profile
lowProf Span
20-83 ft
Low-wide waterway enclosures,
culverts, storm sewers (structural plate).
Specials Various For lining old structures or other
spcial puposes. Special fabrication.
Notes: *For equal area or clearance, the round shape is generally more economical and easier to assemble.
